TRAKR
Agile, autonomous & mission-ready. Our quadruped robot is engineered to conquer complex industrial terrain.
Agile, autonomous & mission-ready. Our quadruped robot is engineered to conquer complex industrial terrain.

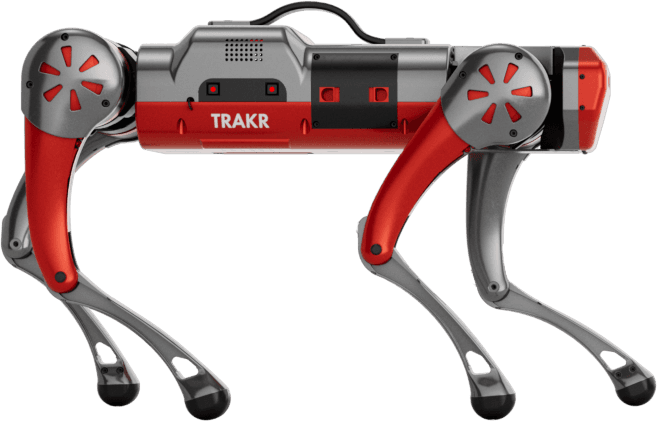

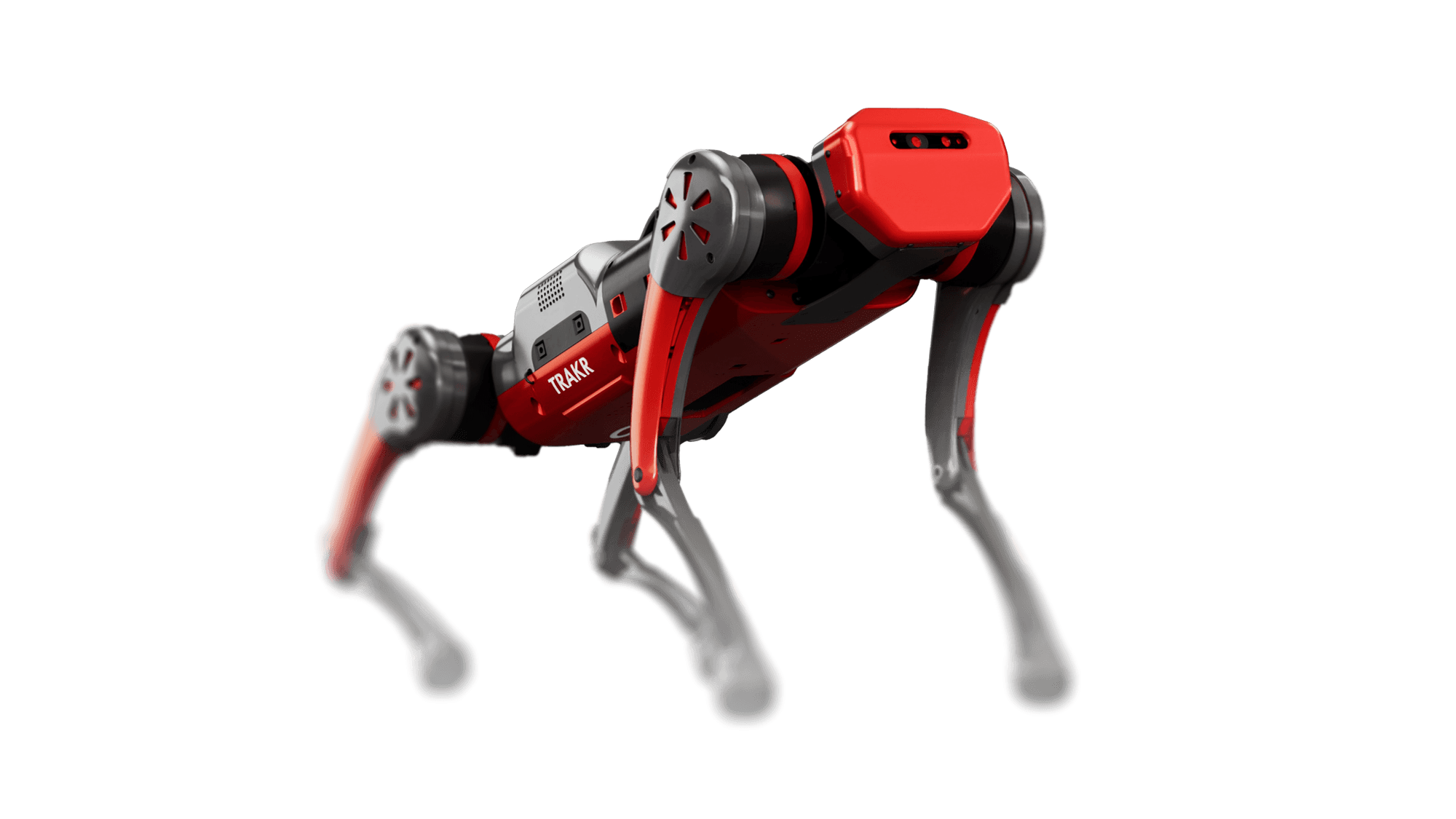

Trakr delivers autonomous mobility for challenging environments
Trakr is a rugged quadruped robot purpose‑built for remote inspection, real‑time data collection, and autonomous security patrols across oil & gas fields, warehouses, refineries, and other hard‑to‑reach sites.
With high-torque actuators, dynamic stability control, and perception-driven navigation, Trakr adapts to your industrial landscape, indoors or out.
All-Terrain Mobility
Climbs stairs, slopes (≤ 30°), and traverses rubble, grating, or confined passages without loss of balance.
All-Terrain Mobility
Climbs stairs, slopes (≤ 30°), and traverses rubble, grating, or confined passages without loss of balance.
All-Terrain Mobility
Climbs stairs, slopes (≤ 30°), and traverses rubble, grating, or confined passages without loss of balance.
All-Terrain Mobility
Climbs stairs, slopes (≤ 30°), and traverses rubble, grating, or confined passages without loss of balance.
Advanced Sensor Suite
High-resolution depth camera, LiDAR, IMU, and optional foot-pressure sensors enable centimetre-level localisation and environmental awareness in GPS-denied zones.
Advanced Sensor Suite
High-resolution depth camera, LiDAR, IMU, and optional foot-pressure sensors enable centimetre-level localisation and environmental awareness in GPS-denied zones.
Advanced Sensor Suite
High-resolution depth camera, LiDAR, IMU, and optional foot-pressure sensors enable centimetre-level localisation and environmental awareness in GPS-denied zones.
Advanced Sensor Suite
High-resolution depth camera, LiDAR, IMU, and optional foot-pressure sensors enable centimetre-level localisation and environmental awareness in GPS-denied zones.
Dynamic Locomotion
Model Predictive Control (MPC) and Reinforcement Learning (RL) deliver real-time stability and adaptive gait behaviours across uneven terrain.
Dynamic Locomotion
Model Predictive Control (MPC) and Reinforcement Learning (RL) deliver real-time stability and adaptive gait behaviours across uneven terrain.
Dynamic Locomotion
Model Predictive Control (MPC) and Reinforcement Learning (RL) deliver real-time stability and adaptive gait behaviours across uneven terrain.
Dynamic Locomotion
Model Predictive Control (MPC) and Reinforcement Learning (RL) deliver real-time stability and adaptive gait behaviours across uneven terrain.
Fully Autonomous Missions
Program patrol routes or inspection points; the quadruped robot executes tasks with minimal oversight and auto-returns to charge.
Fully Autonomous Missions
Program patrol routes or inspection points; the quadruped robot executes tasks with minimal oversight and auto-returns to charge.
Fully Autonomous Missions
Program patrol routes or inspection points; the quadruped robot executes tasks with minimal oversight and auto-returns to charge.
Fully Autonomous Missions
Program patrol routes or inspection points; the quadruped robot executes tasks with minimal oversight and auto-returns to charge.
Add-On Features
Add-On Features
* AVAILABLE BASED ON CONFIGURATION
* AVAILABLE BASED ON CONFIGURATION
3D LiDAR
3D LiDAR
ACOUSTIC INSPECTION
ACOUSTIC INSPECTION
MANUAL JOYSTICK
MANUAL JOYSTICK
THERMAL IMAGING
THERMAL IMAGING
VISUAL CAMERA
VISUAL CAMERA
DUST & WATERPROOF CASING
DUST & WATERPROOF CASING
SERVO ARM MECHANISM
SERVO ARM MECHANISM
NIGHT VISION CAMERA
NIGHT VISION CAMERA
EXPLOSION PROOF HOUSING
EXPLOSION PROOF HOUSING
INTERACT TO DISCOVER
Technical Specifications
Technical
Specifications
Trakr 5 is our agile quadruped for inspections. 5 kg carry, quick in tight spaces.
Trakr 20 is the heavy-duty quadruped. 20 kg carry, rock-steady under load.
• Agile • Tight spaces
MECHANICAL & PHYSICAL
STANDING HEIGHT
280 MM
HEIGHT OF CROUCHING
120 MM
WEIGHT (INCL BATTERY)
18 KG
MATERIAL
ALUMINIUM ALLOY + HIGH STRENGTH ENGINEERING PLASTIC
PAYLOAD
5 KG
ELECTRICAL & BATTERY
VOLTAGE
48 V
BATTERY CAPACITY
8 AH
SMART BATTERY
YES
ENDURANCE
2 HRS
MOBILITY & PERFORMANCE
SPEED
1.2 M/S
MAX CLIMB ANGLE
25 DEGREES
MAXIMUM STEP
120 MM
MAX CLIMB DROP HEIGHT
150 MM
ACTUATION & JOINTS
MAX TORQUE
30 NM
KNEE JOINT MOTOR
PLANETARY JOINT ACTUATORS
RANGE OF MOTION
ABDUCTION −45° TO +45°, HIP −200° TO +90°, SHANK −155° TO −60°
COMPUTE & CONTROL
BASIC COMPUTING POWER
I7 PROCESSOR
HIGH COMPUTING POWER MODULE
JETSON ORIN
MANUAL CONTROLLER
YES
ENVIRONMENT & RATING
TEMPERATURE
−20 °C TO 55 °C
INGRESS PROTECTION (IP RATING)
IP67 (OPTIONAL)
SENSORS & VISION
LIDAR
3D LIDAR
HD WIDE ANGLE CAMERA
YES
FOOT END FORCE SENSOR
OPTIONAL
WIRELESS TRACKING MODULE
OPTIONAL
CHARGING & POWER I/O
CHARGING TIME
30 MINS
CHARGER
48 V, 10 A
CHARGING PILE COMPATIBILITY
YES
AUTONOMOUS CHARGING
OPTIONAL
COMMUNICATION & NETWORKING
COMMUNICATION
WIFI 2.4 GHZ / 5 GHZ, ETHERNET
ADDITIONAL MODULES
5G, GPS, RTK, BEYOND HORIZON COMMUNICATION
WIFI 6 WITH DUAL BAND
YES
BLUETOOTH 5.2 / 4.2 / 2.1
YES
OPTIONAL FEATURES & MODULES
BASIC ACTION
YES
FRONT LAMP
YES
5G MODULE
OPTIONAL
4G MODULE
OPTIONAL
VOICE FUNCTION
OPTIONAL
SIDE FOLLOW SYSTEM
OPTIONAL
INTELLIGENT DETECTION & AVOIDANCE
YES
SECONDARY DEVELOPMENT
YES
Trakr 5 is our agile quadruped for inspections. 5 kg carry, quick in tight spaces.
Trakr 20 is the heavy-duty quadruped. 20 kg carry, rock-steady under load.
• Agile • Tight spaces
MECHANICAL & PHYSICAL
STANDING HEIGHT
280 MM
HEIGHT OF CROUCHING
100 MM
WEIGHT (INCL BATTERY)
18 KG
MATERIAL
ALUMINIUM ALLOY + HIGH STRENGTH ENGINEERING PLASTIC
PAYLOAD
5 KG
ELECTRICAL & BATTERY
VOLTAGE
48 V
BATTERY CAPACITY
8 AH
SMART BATTERY
YES
ENDURANCE
2 HRS
MOBILITY & PERFORMANCE
ACTUATION & JOINTS
COMPUTE & CONTROL
COMMUNICATION
& NETWORKING
SENSORS & VISION
ENVIRONMENT & RATING
CHARGING & POWER I/O
OPTIONAL FEATURES
& MODULES
Trakr 5 is our agile quadruped for inspections. 5 kg carry, quick in tight spaces.
Trakr 20 is the heavy-duty quadruped. 20 kg carry, rock-steady under load.
• Agile • Tight spaces
MECHANICAL & PHYSICAL
STANDING HEIGHT
280 MM
HEIGHT OF CROUCHING
100 MM
WEIGHT (INCL BATTERY)
18 KG
MATERIAL
ALUMINIUM ALLOY + HIGH STRENGTH ENGINEERING PLASTIC
PAYLOAD
5 KG
ELECTRICAL & BATTERY
VOLTAGE
48 V
BATTERY CAPACITY
8 AH
SMART BATTERY
YES
ENDURANCE
2 HRS
MOBILITY & PERFORMANCE
ACTUATION & JOINTS
COMPUTE & CONTROL
COMMUNICATION
& NETWORKING
SENSORS & VISION
ENVIRONMENT & RATING
CHARGING & POWER I/O
OPTIONAL FEATURES
& MODULES
Designed for critical missions, our quadruped navigates hostile terrains where humans and wheels cannot.
Designed for critical missions, our quadruped navigates hostile terrains where humans and wheels cannot.
Designed for critical missions, our quadruped navigates hostile terrains where humans and wheels cannot.
Designed for critical missions, our quadruped navigates hostile terrains where humans and wheels cannot.
